Crown RCAN USB CAN Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B
| Herkunftsort | CHINA |
|---|---|
| Markenname | For Crown |
| Modellnummer | Für Crown |
| Min Bestellmenge | 1 |
| Verpackung Informationen | Paket |
| Lieferzeit | 1 Arbeitstag |
| Zahlungsbedingungen | T/T, Western Union, Moneygram |
| Versorgungsmaterial-Fähigkeit | 1000 |
Produktdetails
| Modell: | Für Crown CAN-Schnittstelle | Modellname: | Für Crown |
|---|---|---|---|
| Herkunft: | Festland China | Qualität: | Vorgesetzter |
| Softwareversion: | Version 5.33 | Modelle unterstützt: | Alle Kronengabelstapler |
| Name: | für Kronendiagnosegerät | Artikeltyp: | Fahrzeugdiagnostische Kabel und -anschlüsse |
| Automobildiagnose-tool: | Für die Kronen-RCAN-USB CAN-Schnittstelle | Hardware-Version: | Für Pcan Crown CAN |
| Schlüssel: | Kronen-Forklift-Scanner-Werkzeug | Schlüssel 1: | Kronenreparatursoftware |
| Elementname: | Für das Pcan-Kronendiagnosetool | Schlüssel 2: | Reparaturhandbuch und Dienstleistung |
| Markenname: | Auto Forklift for Crown Scan tools | ||
| Hervorheben: | Version 5.33 Forklift Diagnostic Tool,ISO 11898-2 Crown RCAN USB CAN Interface,CAN Specifications 2.0A and 2.0B Crown Forklift Scanner |
||
Produktbeschreibung
Forklift Coach Lift-Truck Truck Diagnostic Tool Crown Rcan Pcan USB Can Diagnostic Cable For Toyota Crown Peak System
|

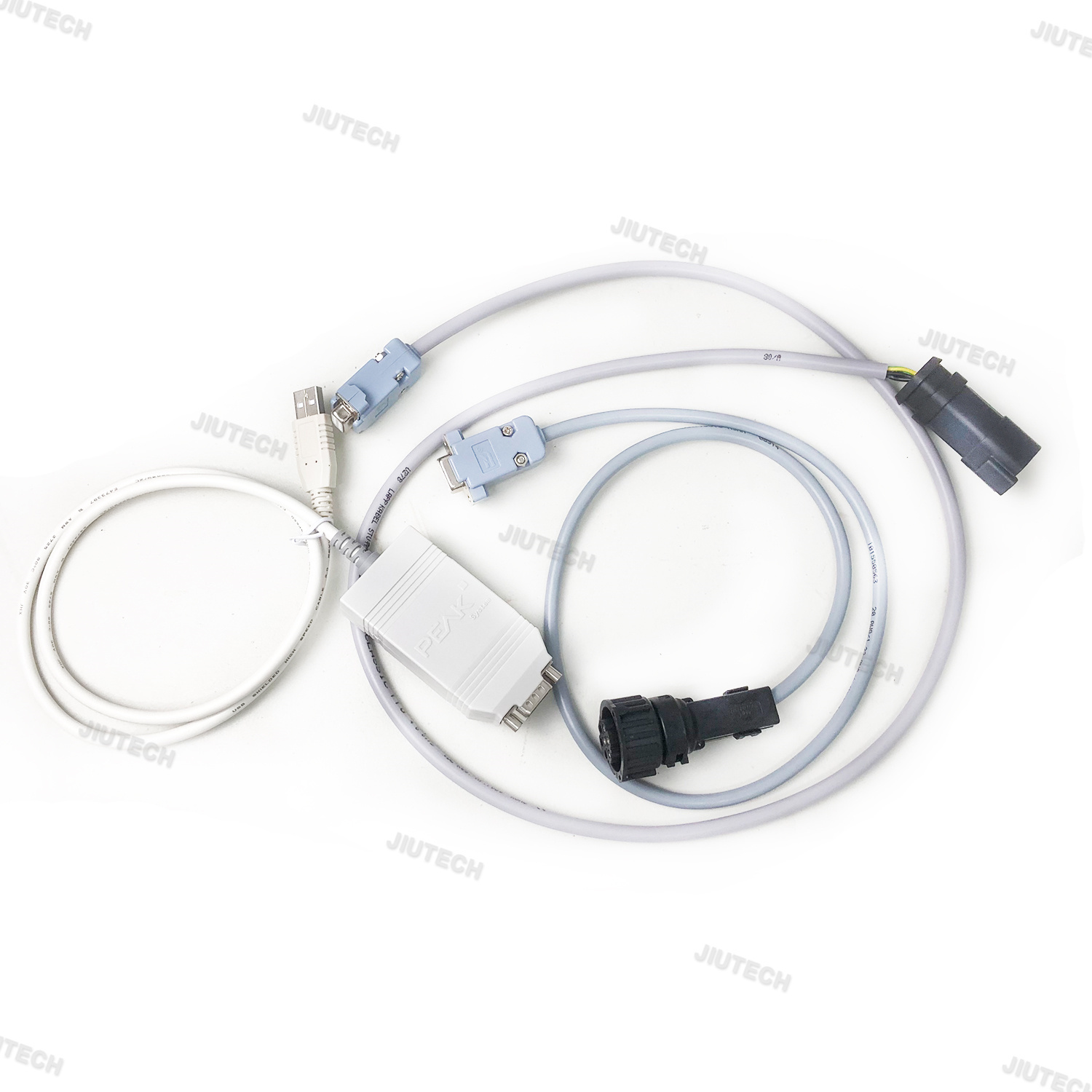

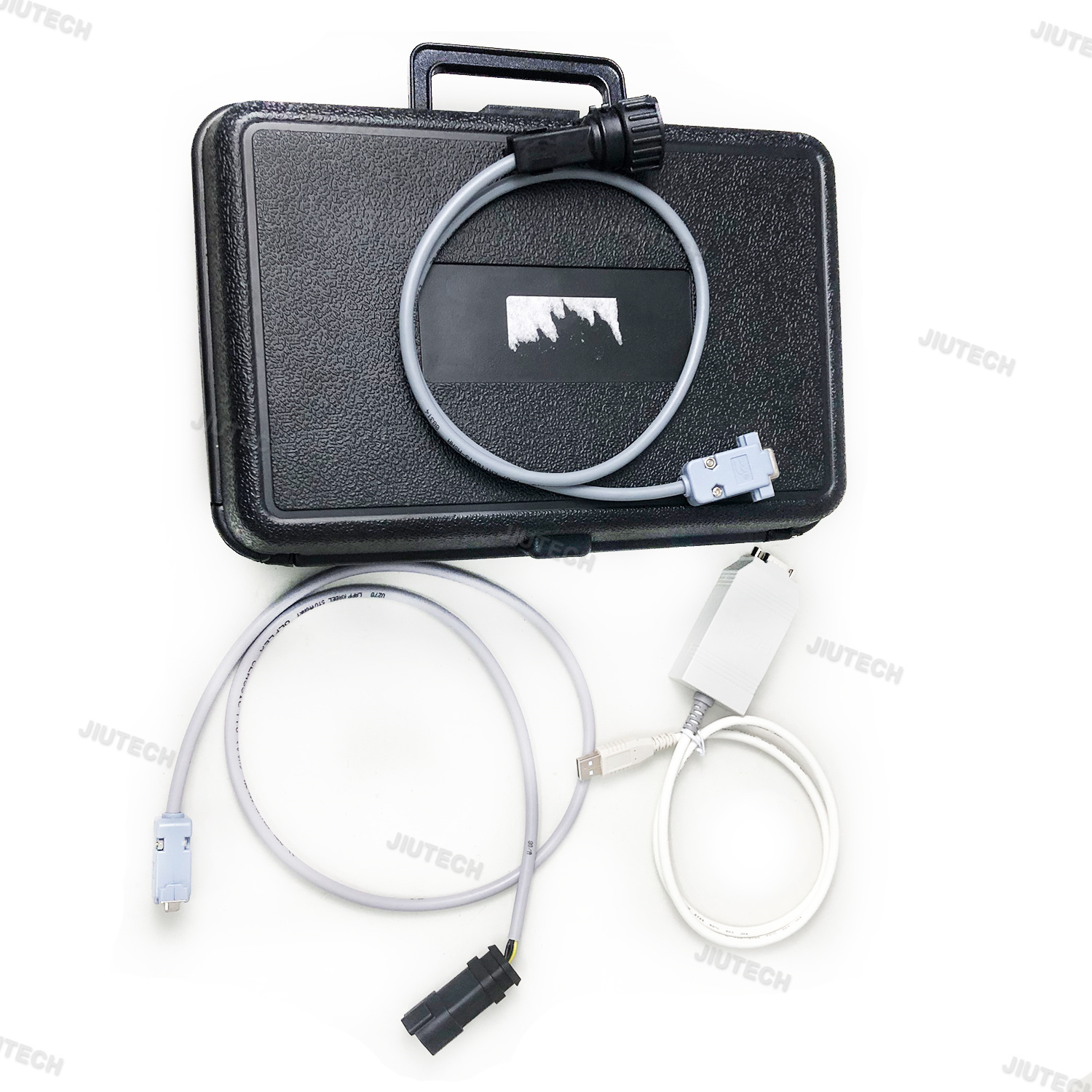

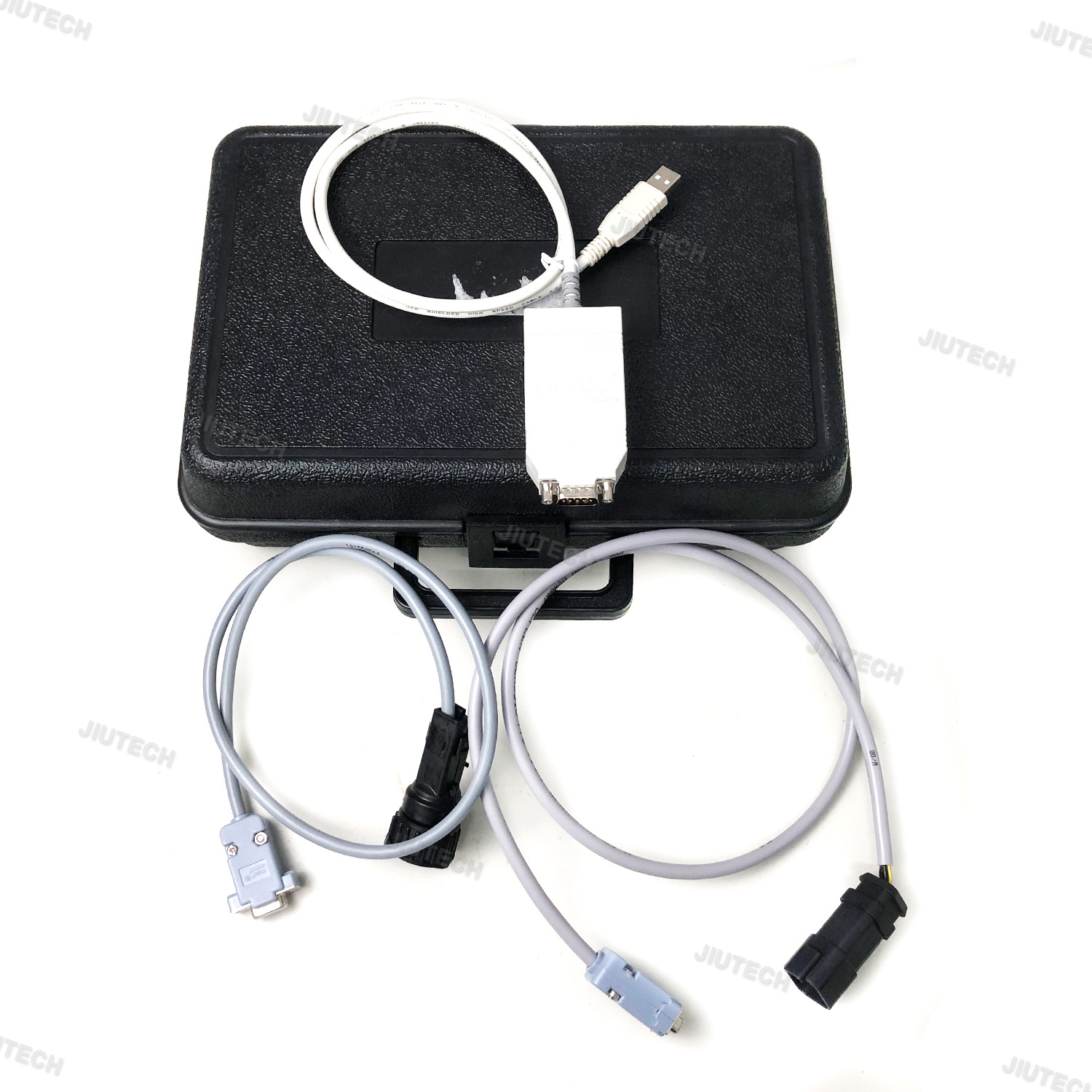

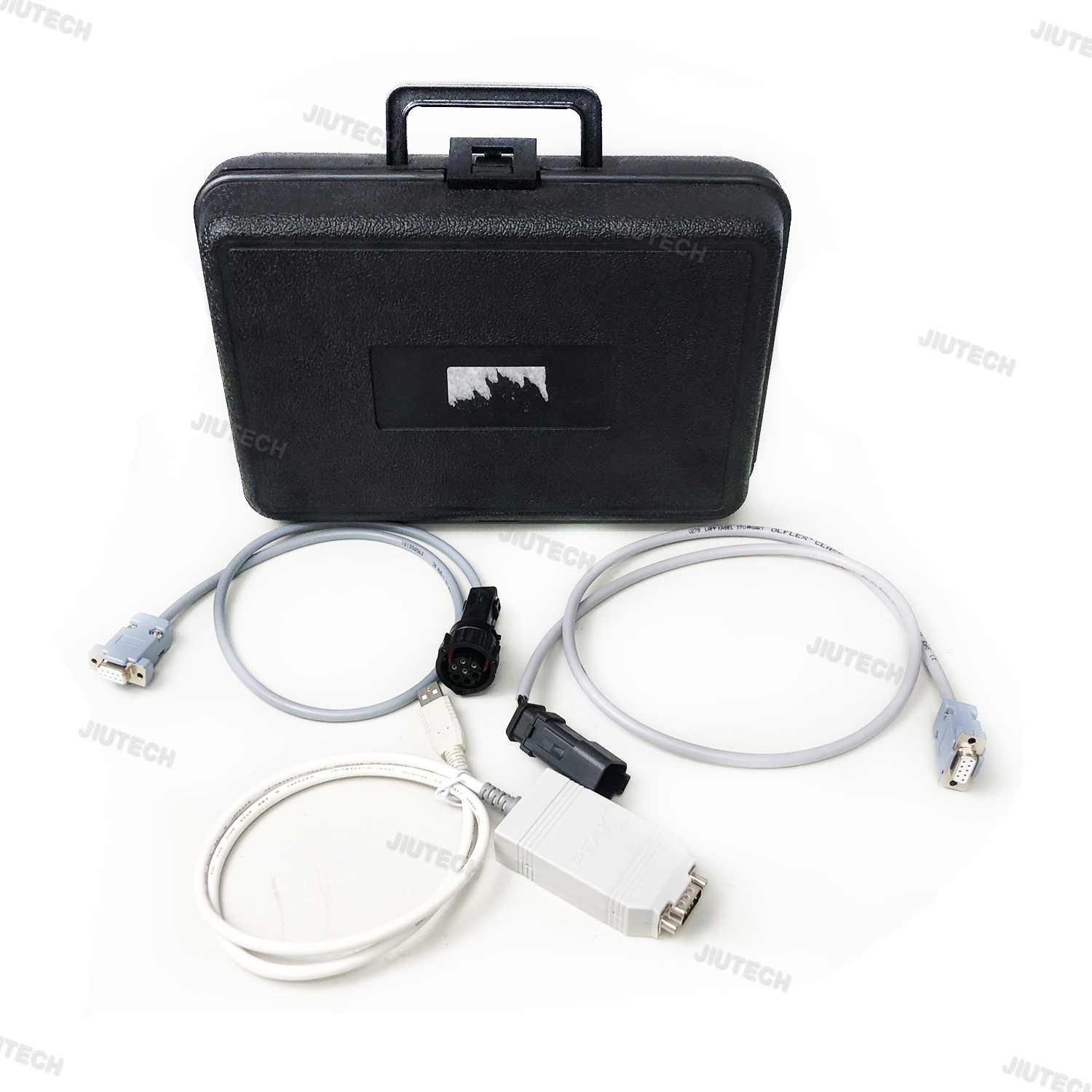

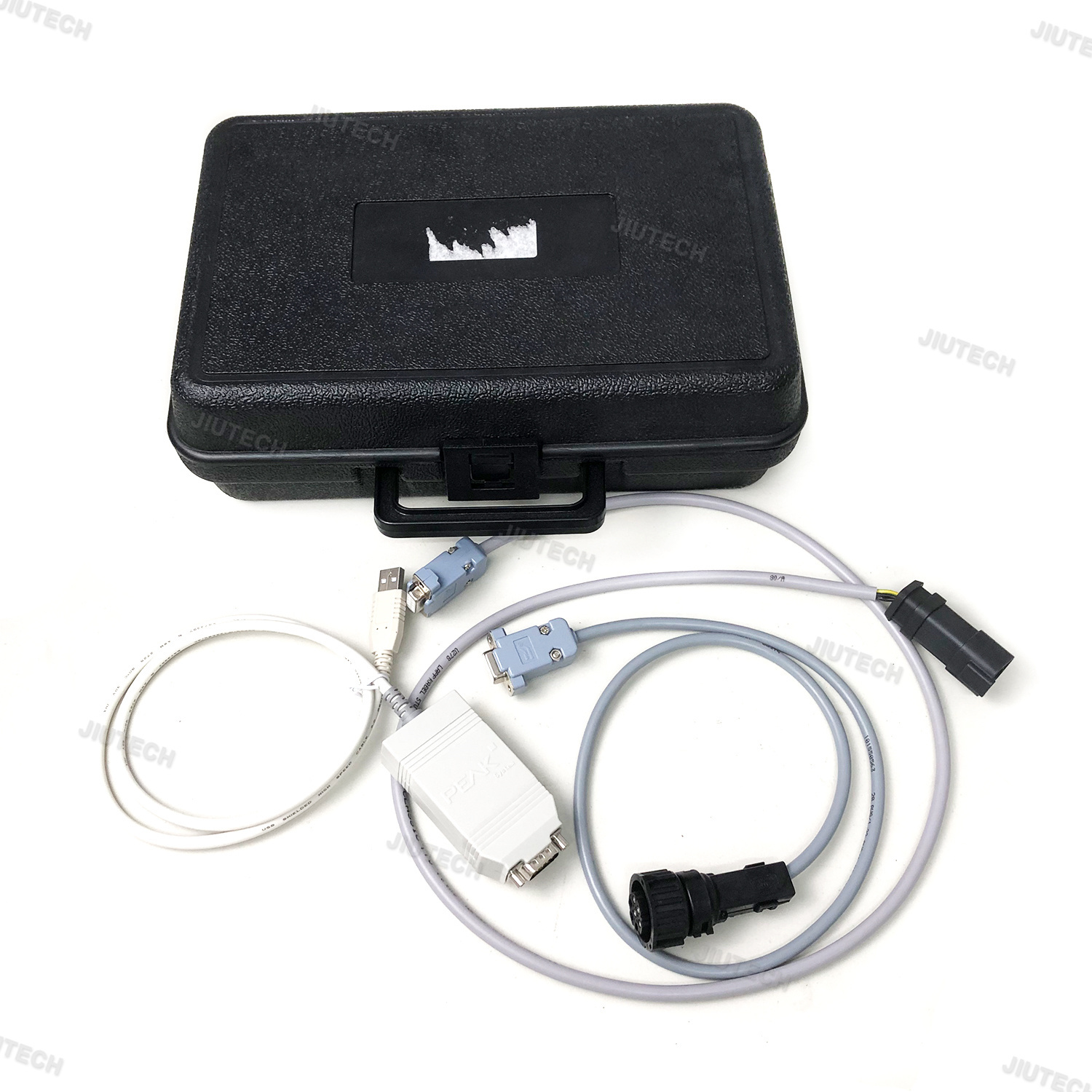

Package List : |
|
1* Crown USB adapter |
|
1* Can cable |
|
1* cd diagnostic software |
Please Note: if you need repair manual need to be purchased separately
supports models:All crown forklifts
Description:
The PCAN-USB adapter enables simple connection to CAN networks. Its compact plastic casing makes it suitable for mobile applications.
The opto-decoupled version guarantees galvanic isolation of up to 500 Volts between the PC and the CAN side.
The package is also supplied with the CAN monitor PCAN-View for Windows and the programming interface PCAN-Basic.
Technical Specifications :
Adapter for the USB connection (Full-Speed mode, compatible with USB 1.1, USB 2.0, and USB 3.0)
High-speed CAN connection (ISO 11898-2)
Bit rates from 5 kbit/s up to 1 Mbit/s
Time stamp resolution approx. 42 µs
Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
CAN bus connection via D-Sub, 9-pin (in accordance with CiA 106)
N-XP SJA1000 CAN controller, 16 MHz clock frequency
N-XP PCA82C251 CAN transceiver
Galvanic isolation on the CAN connection up to 500 V (only for IPEH-002022)
CAN termination can be activated through a solder jumper
5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
Voltage supply via USB
Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)We also have other forklifts: linde , still, yale hystre, cat, mitsubishi, judit
Can be installed in a computer
The following is the installed interface diagram:
